Woodman Axis ICF IS42/IS47

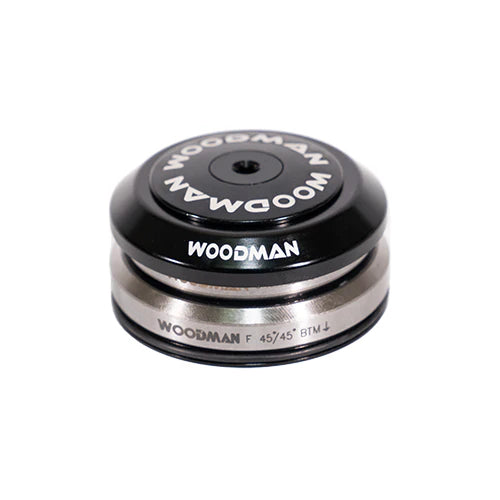

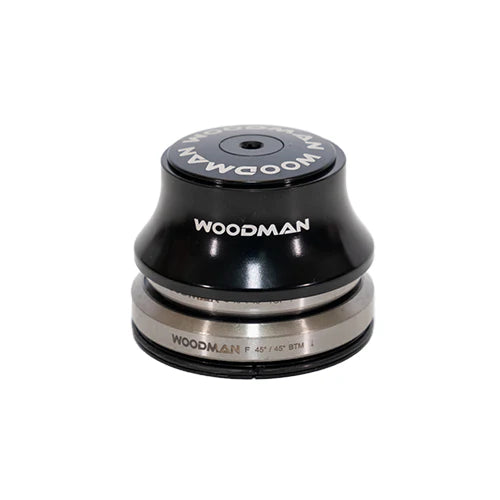

The IS42/IS47 headset is designed for full integration with a tapered 1 1/8" integrated top and 1 1/4" integrated bottom headtube. It is suitable for use with a tapered 1 1/8" to 1 1/4" steerer fork. The S.H.I.S. designation is IS42/28.6 IS47/33. Ensure that the fork steerer is tapered 1 1/8" to 1 1/4". The headset is available in 7mm and 20mm dust cover options.

MATERIALS:

CNC-machined 6061 T6 Aluminum and durable sealed bearings

TECH SPECS：

Fully integrated headset for tapered 1 1/8" integrated top and 1 1/4" integrated bottom headtube. For TAPERED 1 1/8" to 1 1/4" fork.

• S.H.I.S Top：IS42/28.6
• S.H.I.S Bottom：IS47/33
• Fork Steerer：TAPERED 1 1/8" to 1 1/4" fork.
• Top Bearing：Woodman C45°/45°  (42 x 30.6 x 6.5mm)
• Bottom Bearing：Woodman F45°/45°  (46.9 x 34.1 x 7mm)
