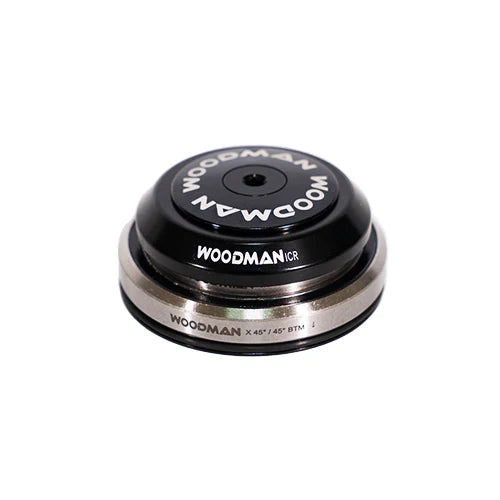

WOOdman Axis ICR 1.5 IS41/IS52

Fully integrated headset for tapered 1 1/8" integrated top headtube and 1.5 integrated bottom. For TAPERED 1 1/8" to 1.5 fork. IS41/28.6 IS52/40.

The Axis ICR 1.5 IS41/IS52 tapered integrated headset is designed for 1-1/8"  36°/45° upper and bottom 1.5 45°/45° (52X7mm) headtube with tapered steerer forks, and it's engineered to deliver smooth steering and enhance stability on any terrain.

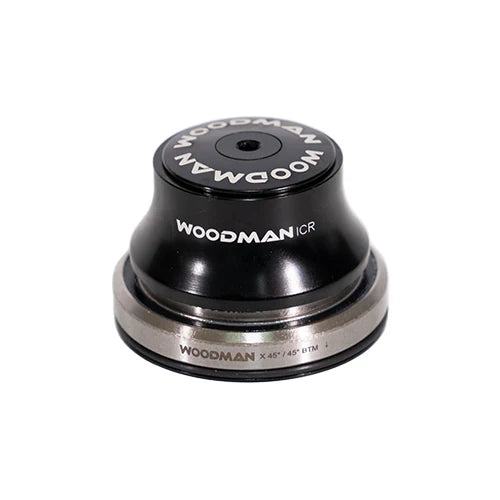

The headset available in a standard ICR 8mm and ICR 20mm dust cover. The package includes the Woodman SGC Crown Race, Position Specific Bearings, and SP Height Adjustment Plate. This design does not require any specific tools and is easy to install.

MATERIALS:

CNC-machined 6061 T6 Aluminum, durable sealed bearings

TECH SPECS：

• S.H.I.S Top：IS41/28.6
• S.H.I.S Bottom：IS52/40
• Fork Steerer：Tapered 1 1/8" to 1.5" fork
• Top Bearing：Woodman CR36°/45°  (41x6.5mm)
• Bottom Bearing：Woodman X45°/45°  (52x7mm)
