Woodman Axis ICR 1.5 K IS41/IS52-30

Fully integrated headset for tapered 1 1/8" integrated top and 1.5 integrated bottom headtube for Straight 1 1/8" fork. IS41/28.6 IS52/30.

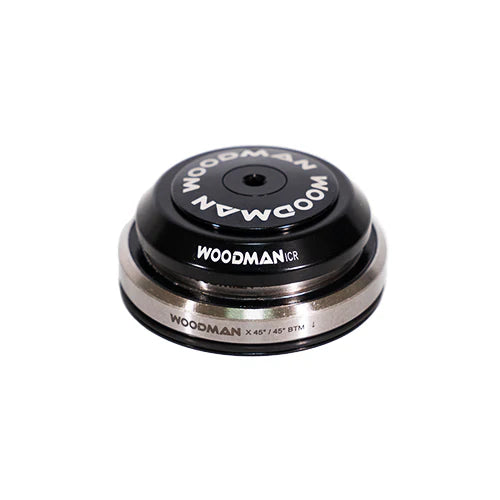

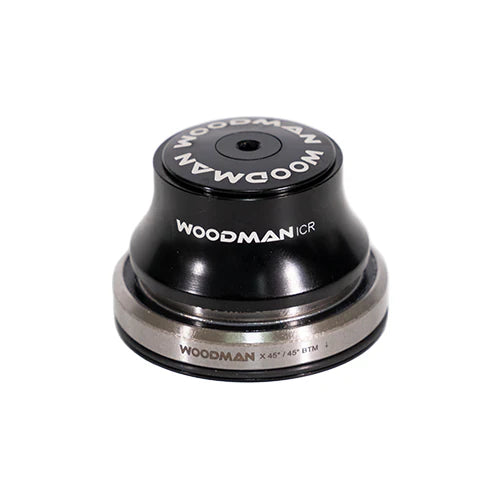

Woodman Axis ICR 1.5K IS41/IS52-30 is a tapered integrated headset with a crown race reducer, utilizing OD41 X H6.5mm top bearing and OD52 X H7mm bottom bearing for a  1 1/8" steerer fork.  Available in ICR 8mm and ICR 20mm dust cover options.

Delivered with Woodman SGC Crown Race, Position Specific Bearings, and SP Height Adjustment Plate. This is No Specific Tool Design, easy to install.

MATERIALS:

CNC-machined 6061 T6 Aluminum

TECH SPECS：

Designed for tapered 1 1/8" to 1.5 headtube with straight 1 1/8" fork.

• S.H.I.S Top：IS41/28.6
• S.H.I.S Bottom：IS52/30
• Fork Steerer：Straight 1 1/8"
• Fork Crown Race：30mm
• Top Bearing：Woodman CR36°/45°  (41x6.5mm)
• Bottom Bearing：Woodman X45°/45°  (52x7mm)
