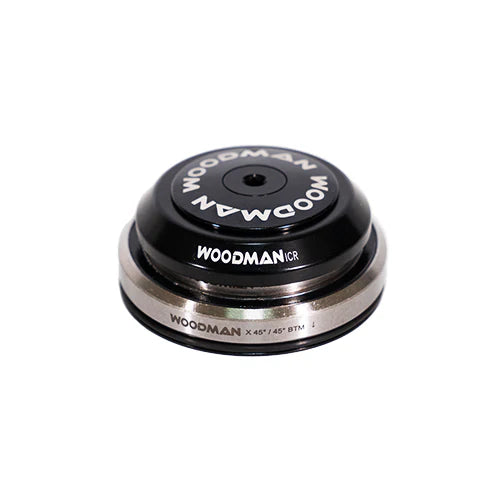

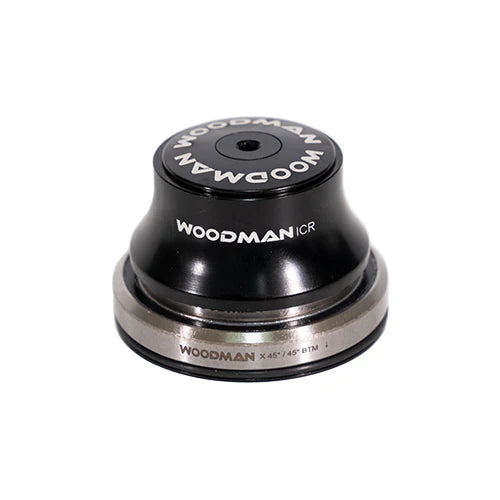

Woodman Axis ICR 1.5K XS IS41/IS52-30

Fully integrated headset for tapered 1 1/8" integrated top and 1.5 integrated bottom headtube. For straight 1 1/8" fork. IS41/28.6 IS51.8/30.

WOOdman Axis ICR 1.5K XS IS41/IS52-30 uses a top 1-1/8" 36°/45° bearing and a bottom 1.5 45°/45° (actual 51.8X8mm) bearing with a crown race reducer, allowing for the conversion of a 1.5 tapered headtube to fit 1-1/8" forks.

The headset comes with a standard 8mm dust cover, and it is also compatible with a ICR 20mm dust cover.

The package includes Woodman SGC Crown Race, Position Specific Bearings, and SP Height Adjustment Plate. This is No Specific Tool Design, easy to install.

MATERIALS:

CNC-machined 6061 T6 Aluminum

TECH SPECS：

• S.H.I.S Top：IS41/28.6
• S.H.I.S Bottom：IS52/30 (Actual 51.8mm)
• Fork Crown Race：30mm
• Fork Steerer：Straight 1 1/8" fork
• Top Bearing：Woodman CR36°/45° (41x6.5mm)
• Bottom Bearing：Woodman XS45°/45° (51.8x8mm)
