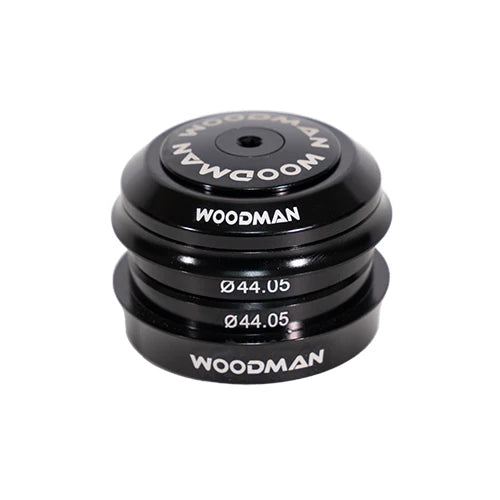

Woodman Axis SICR 1 1/8" ZS44/EC44

Semi-integrated 44mm top and EC 44mm bottom headtube for 1 1/8" straight fork. ZS44/28.6 EC44/30.

Woodman Axis SICR 1 1/8" ZS44/EC44 headset is designed for a 44mm press-in headtube with 1 1/8" steerer forks. Available with either a 7mm or 20mm dust cover options. Compatible with many road bikes and MTB headset on the market.

Delivered with Woodman SGC Crown Race, Position Specific Bearings, and SP Height Adjustment Plate. This is No Specific Tool Design, easy to install.

MATERIALS:

CNC-machined 6061 T6 Aluminum, durable sealed bearings.

TECH SPEC:

S.H.I.S Top：ZS44/28.6
S.H.I.S Bottom：EC44/30
Fork Steerer：Straight 1-1/8"
Top Bearing：Woodman C45°/45°  (42X6.5mm)
Bottom Bearing：Woodman C45°/45°  (42X6.5mm)
Crown Race: 30mm
Stack Height：7mm dust cover- Top 11.9mm, Bottom 9.5mm (Total 20.9mm) / 20mm dust cover- Top 24.6mm, Bottom 9.5mm (Total 34.1mm)
